Main applications:

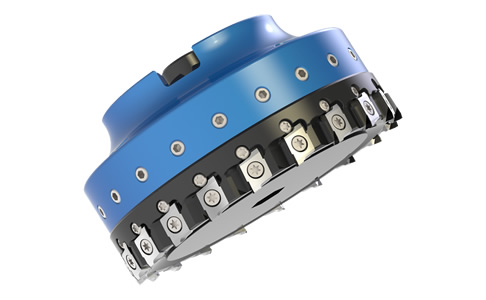

PCD reversible face milling cutter is used for end face milling and square shoulder milling of non-ferrous metals. In the same price range, it has ultra-high flexibility and can perform both rough and fine machining, reducing the high cost downtime caused by tool replacement. Whether it is high chip removal rate, surface roughness requirements, or special requirements for part flatness, PCD indexing face milling cutters can always meet them.
characteristic:
1. Adopting a bimetallic design of aluminum alloy and steel, reducing some auxiliary parts, the structure is simple and easy to operate; The service life of the cutterhead is several times longer than that of a conventional aluminum alloy cutterhead.
2. The predetermined positioning surface enables the blade to be quickly positioned, with a positioning accuracy of up to 0.02mm, meeting the needs of many users without pre adjustment equipment.
3. The jumping adjustment is simple, with an adjustment range of within 0.1mm. The special and convenient adjustment structure allows the entire disc blade to be adjusted to a progress of within 2 microns.
4. The blade replacement is simple, and various main angle blades can be used.
5. The blade adopts a separation design between the positioning surface and the rear cutting surface, and the positioning surface is not affected by subsequent processing, ensuring the effectiveness of the positioning surface.
6. The blade has multiple main angle designs to meet different scenarios of end face milling and square shoulder milling.
7. The dual headed design of the blade allows for repeated demon repair, reducing customer usage costs.
Service:
In the modern cutting environment, there are many parameters that must be taken into account, even the most reasonable and scientific process specifications or tool designs, as well as various process plans, in the mass production process. With professional skills and rich experience, it can be applied in a reasonable way to each requirement.
New Product Supply:
According to your request, we can install and adjust the end face milling cutter blades and transport them together; Install, adjust, and balance the replacement blades of the end face milling cutter, and transport them together.
PCD blade grinding:
Provide grinding services;
Provide replacement and grinding services while maintaining the same tool diameter and length.
